Descriere
Grinda de ridicare reglabila de gabarit redus, disponibilă pentru sarcini de la 0.5 tone la 20 tone.
Avantaje grinda ridicare reglabila
- design simplu pentru o manevrare ușoară
- pentru înălțime joasa de utilizare
- lungimea grinzii poate fi ajustată cu bolțuri, pasul de reglaj fiind de 500 mm
- prevazuta cu inel de ridicare pentru atasare la bratul macaralei

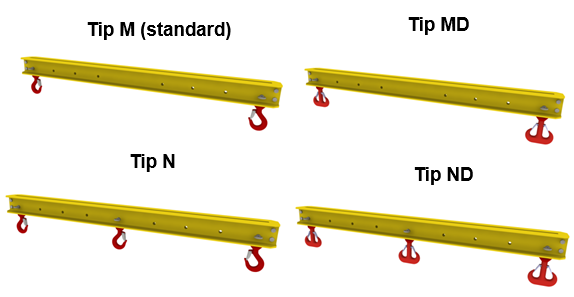

- prevazuta cu 2 cârlige pivotante cu rulmenți
Specificații tehnice grinda de ridicare reglabila
- model: TRS A-M
- respectă prevederile Directivei Mașini: 2006/42/CE
- realizată conform standardului armonizat: EN 13155
- marcaje: marca producătorului, marcajul CE, capacitatea de încărcare, numărul fabricii, anul de producție

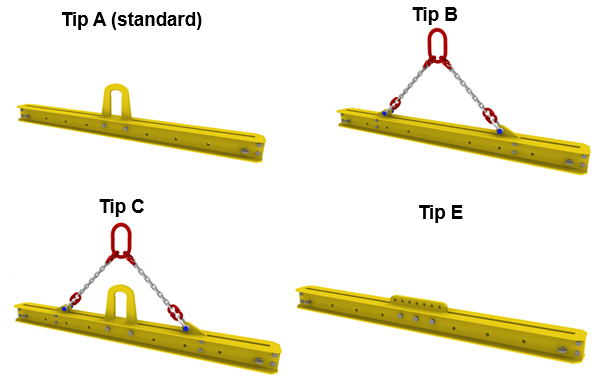

Personalizare grinda la cerere
- la cerere se pot realiza și alte configurații
- gaura suplimentara pentru sistem de ridicare cu chingi cu doua brate
- gaura aditionala sub inelul central
- carlige suplimentare
Variante produs
| WLL [t] | Dimensiuni [mm] | Lungime L [m] | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1,5 | 2 | 2,5 | 3 | 3,5 | 4 | 4,5 | 5 | 5,5 | 6 | 7 | 8 | |||
| 0,5 | A=20 B=15 | Cod TRS AM | 0,5-1,0 | 0,5-1,5 | 0,5-2,0 | 0,5-2,5 | 0,5-3,0 | 0,5-3,5 | 0,5-4,0 | 0,5-4,5 | 0,5-5,0 | 0,5-5,5 | 0,5-6,0 | 0,5-7,0 | 0,5-8,0 |
| C=27,5 W=60 | HR [mm] | 320 | 320 | 335 | 350 | 350 | 350 | 370 | 370 | 390 | 390 | 390 | 408 | 408 | |
| T=130 | Masa [kg] | 26 | 34 | 42 | 51 | 59 | 67 | 92 | 103 | 142 | 155 | 168 | 233 | 265 | |
| 1 | A=20 B=15 | Cod TRS AM | 1,0-1,0 | 1,0-1,5 | 1,0-2,0 | 1,0-2,5 | 1,0-3,0 | 1,0-3,5 | 1,0-4,0 | 1,0-4,5 | 1,0-5,0 | 1,0-5,5 | 1,0-6,0 | 1,0-7,0 | 1,0-8,0 |
| C=27,5 W=60 | HR [mm] | 320 | 335 | 345 | 366 | 366 | 386 | 386 | 405 | 405 | 405 | 424 | 424 | 424 | |
| T=130 | Masa [kg] | 26 | 34 | 42 | 61 | 72 | 103 | 116 | 153 | 169 | 185 | 235 | 318 | 416 | |
| 2 | A=30 B=20 | Cod TRS AM | 2,0-1,0 | 2,0-1,5 | 2,0-2,0 | 2,0-2,5 | 2,0-3,0 | 2,0-3,5 | 2,0-4,0 | 2,0-4,5 | 2,0-5,0 | 2,0-5,5 | 2,0-6,0 | 2,0-7,0 | 2,0-8,0 |
| C=27,5 W=75 | HR [mm] | 375 | 394 | 394 | 414 | 432 | 432 | 432 | 451 | 451 | 460 | 460 | 480 | 500 | |
| T=160 | Masa [kg] | 35 | 51 | 61 | 87 | 117 | 133 | 149 | 192 | 211 | 270 | 292 | 385 | 502 | |
| 3 | A=35 B=20 | Cod TRS AM | 3,0-1,0 | 3,0-1,5 | 3,0-2,0 | 3,0-2,5 | 3,0-3,0 | 3,0-3,5 | 3,0-4,0 | 3,0-4,5 | 3,0-5,0 | 3,0-5,5 | 3,0-6,0 | 3,0-7,0 | 3,0-8,0 |
| C=27,5 W=75 | HR [mm] | 390 | 410 | 410 | 429 | 448 | 448 | 456 | 456 | 476 | 476 | 476 | 496 | 516 | |
| T=160 | Masa [kg] | 45 | 65 | 80 | 105 | 140 | 160 | 215 | 240 | 295 | 320 | 355 | 460 | 585 | |
| 5 | A=45 B=25 | Cod TRS AM | 5,0-1,0 | 5,0-1,5 | 5,0-2,0 | 5,0-2,5 | 5,0-3,0 | 5,0-3,5 | 5,0-4,0 | 5,0-4,5 | 5,0-5,0 | 5,0-5,5 | 5,0-6,0 | 5,0-7,0 | 5,0-8,0 |
| C=34,5 W=100 | HR [mm] | 480 | 500 | 520 | 538 | 538 | 548 | 568 | 568 | 588 | 588 | 608 | 608 | 624 | |
| T=200 | Masa [kg] | 55 | 75 | 105 | 140 | 165 | 225 | 280 | 310 | 380 | 420 | 505 | 585 | 725 | |
| 7,5 | A=55 B=25 | Cod TRS AM | 7,5-1,0 | 7,5-1,5 | 7,5-2,0 | 7,5-2,5 | 7,5-3,0 | 7,5-3,5 | 7,5-4,0 | 7,5-4,5 | 7,5-5,0 | 7,5-5,5 | 7,5-6,0 | 7,5-7,0 | 7,5-8,0 |
| C=34,5 W=110 | HR [mm] | 555 | 590 | 614 | 632 | 625 | 640 | 670 | 660 | 680 | 680 | 696 | 715 | 715 | |
| T=220 | Masa [kg] | 70 | 105 | 145 | 195 | 230 | 295 | 365 | 390 | 485 | 525 | 625 | 915 | 980 | |
| 10 | A=60 B=35 | Cod TRS AM | 10,0-1,0 | 10,0-1,5 | 10,0-2,0 | 10,0-2,5 | 10,0-3,0 | 10,0-3,5 | 10,0-4,0 | 10,0-4,5 | 10,0-5,0 | 10,0-5,5 | 10,0-6,0 | 10,0-7,0 | 10,0-8,0 |
| C=38,3 W=120 | HR [mm] | 620 | 639 | 659 | 679 | 698 | 684 | 700 | 720 | 720 | 740 | 740 | 770 | 800 | |
| T=250 | Masa [kg] | 110 | 140 | 185 | 235 | 310 | 360 | 445 | 535 | 590 | 775 | 840 | 980 | 1150 | |
| 15 | A=70 B=40 | Cod TRS AM | 15,0-1,0 | 15,0-1,5 | 15,0-2,0 | 15,0-2,5 | 15,0-3,0 | 15,0-3,5 | 15,0-4,0 | 15,0-4,5 | 15,0-5,0 | 15,0-5,5 | 15,0-6,0 | ||
| C=44,5 W=130 | HR [mm] | 720 | 760 | 760 | 780 | 799 | 818 | 818 | 830 | 860 | 878 | 878 | |||
| T=270 | Masa [kg] | 150 | 215 | 255 | 315 | 390 | 540 | 605 | 680 | 780 | 930 | 1040 | |||
| 20 | A=80 B=45 | Cod TRS AM | 20,0-1,0 | 20,0-1,5 | 20,0-2,0 | 20,0-2,5 | 20,0-3,0 | 20,0-3,5 | 20,0-4,0 | 20,0-4,5 | |||||
| C=64 W=150 | HR [mm] | 802 | 822 | 842 | 862 | 892 | 908 | 922 | 922 | ||||||
| T=300 | Masa [kg] | 250 | 300 | 365 | 495 | 560 | 645 | 785 | 865 | ||||||
| Distanța între punctele de fixare (m) pentru diferite lungimi ale traversei | |||||||||||||||
| 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 | 4,5 | 5,0 | 5,5 | 6,0 | 7,0 | 8,0 | |||
| 0,5 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 | 4,5 | 5,0 | 5,5 | 6,5 | 7,5 | |||
| 0,5 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 | 4,5 | 5,0 | 6,0 | 7,0 | ||||
| 0,5 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 | 4,5 | 5,5 | 6,5 | |||||
| 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 | 5,0 | 6,0 | |||||||
| 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,5 | 5,5 | ||||||||
| 1,5 | 2,0 | 2,5 | 3,0 | 4,0 | 5,0 | ||||||||||
| 2,0 | 2,5 | 3,5 | 4,5 | ||||||||||||
| 3,0 | 4,0 | ||||||||||||||
| 3,5 | |||||||||||||||
| 3,0 | |||||||||||||||
