Descriere

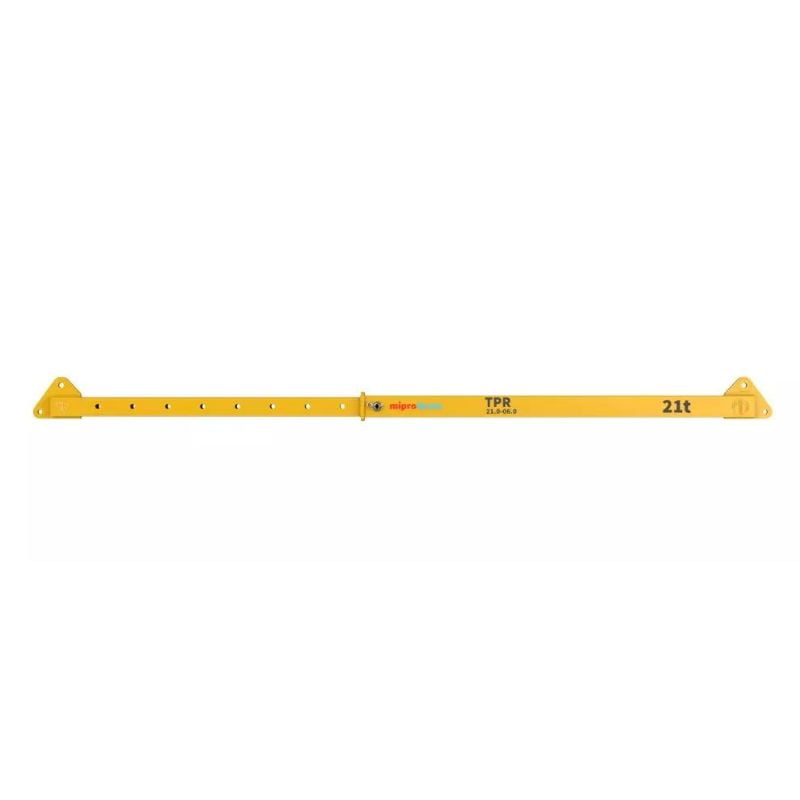

Grinda imprastiere reglabila pentru sarcini de la 2.8 t pana la 30 t.
- grinda de ridicare vândută fără accesorii detașabile (adică fără chingi, cârlige, cuple, conectori etc.).
- proiectată pentru a funcționa cu un sistem de ridicare cu chingi cu 2 fascicule (unghi maxim de abatere de la verticală – 45°)
Avantaje grinda imprastiere reglabila
- distanța de lucru reglabilă cu o cursă de 287,5 mm
Specificații tehnice grinda ridicare
- model: TPR
- respectă prevederile Directivei Mașini: 2006/42/CE
- realizată conform standardului armonizat: EN 13155
- marcaje: marca producătorului, marcajul CE, capacitatea de încărcare, numărul fabricii, anul de producție
Variante produs

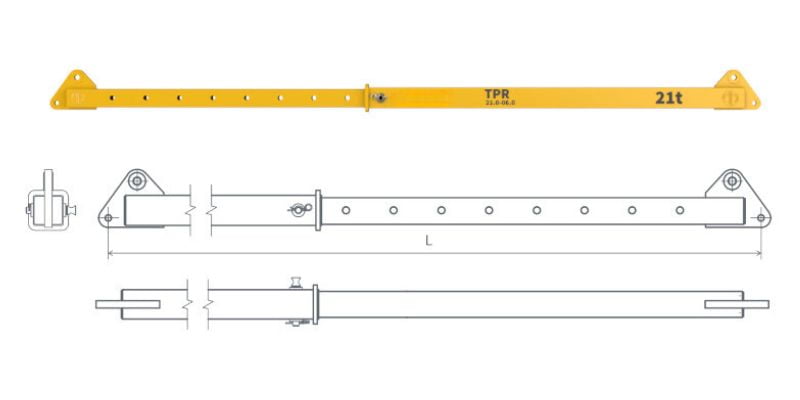

| Cod | WLL | Domeniul de lucru L |
|---|---|---|
| [kg] | [m] | |
| TPR 02.8 – 01.5 | 2800 | 1,5 – 1,1 |
| TPR 02.8 – 02.0 | 2800 | 2,0 – 1,35 |
| TPR 02.8 – 03.0 | 2800 | 3,0 – 1,9 |
| TPR 02.8 – 04.0 | 2800 | 4,0 – 2,4 |
| TPR 02.8 – 05.0 | 2800 | 5,0 – 3,0 |
| TPR 02.8 – 06.0 | 2800 | 6,0 – 3,5 |
| TPR 02.8 – 07.0 | 2800 | 7,0 – 4,5 |
| TPR 02.8 – 08.0 | 2800 | 8,0 – 5,0 |
| TPR 04.25 – 01.2 | 4 250 | 1,2 – 0,8 |
| TPR 04.25 – 01.5 | 4 250 | 1,5 – 1,2 |
| TPR 04.25 – 02.5 | 4 250 | 2,5 – 1,7 |
| TPR 04.25 – 03.0 | 4 250 | 3,0 – 2,0 |
| TPR 04.25 – 03.5 | 4 250 | 3,5 – 2,2 |
| TPR 04.25 – 04.0 | 4 250 | 4,0 – 2,45 |
| TPR 04.25 – 05.0 | 4 250 | 5,0 – 3,0 |
| TPR 04.25 – 06.0 | 4 250 | 6,0 – 3,6 |
| TPR 04.25 – 07.0 | 4 250 | 7,0 – 4,5 |
| TPR 04.25 – 08.0 | 4 250 | 8,0 – 5,0 |
| TPR 07.5 – 01.0 | 7500 | 1,0 – 0,8 |
| TPR 07.5 – 02.0 | 7500 | 2,0 – 1,45 |
| TPR 07.5 – 03.0 | 7500 | 3,0 – 2,0 |
| TPR 07.5 – 03.5 | 7500 | 3,5 – 2,25 |
| TPR 07.5 – 04.0 | 7500 | 4,0 – 2,5 |
| TPR 07.5 – 04.4 | 7500 | 4,4 – 2,8 |
| TPR 07.5 – 05.0 | 7500 | 5,0 – 3,0 |
| TPR 07.5 – 06.0 | 7500 | 6,0 – 3,6 |
| TPR 07.5 – 07.0 | 7500 | 7,0 – 4,5 |
| TPR 07.5 – 08.0 | 7500 | 8,0 – 5,0 |
| TPR 11.2 – 01.0 | 11 200 | 2,0 – 1,6 |
| TPR 11.2 – 03.0 | 11 200 | 3,0 – 2,0 |
| TPR 11.2 – 03.0 | 11 200 | 3,0 – 2,05 |
| TPR 11.2 – 03.5 | 11 200 | 3,5 – 2,3 |
| TPR 11.2 – 04.0 | 11 200 | 4,0 – 2,6 |
| TPR 11.2 – 05.0 | 11 200 | 5,0 – 3,05 |
| TPR 11.2 – 06.0 | 11 200 | 6,0 – 3,6 |
| TPR 11.2 – 07.0 | 11 200 | 7,0 – 4,5 |
| TPR 11.2 – 08.0 | 11 200 | 8,0 – 5,0 |
| TPR 16.0 – 01.0 | 16 000 | 2,0 – 1,6 |
| TPR 16.0 – 02.5 | 16 000 | 2,5 – 1,6 |
| TPR 16.0 – 03.0 | 16 000 | 3,0 – 2,0 |
| TPR 16.0 – 03.8 | 16 000 | 3,8 – 2,35 |
| TPR 16.0 – 05.0 | 16 000 | 5,0 – 3,05 |
| TPR 16.0 – 06.0 | 16 000 | 6,0 – 3,7 |
| TPR 16.0 – 07.0 | 16 000 | 7,0 – 4,5 |
| TPR 16.0 – 08.0 | 16 000 | 8,0 – 4,7 |
| TPR 21.0 – 02.0 | 21 000 | 2,0 – 1,7 |
| TPR 21.0 – 03.0 | 21 000 | 3,0 – 2,0 |
| TPR 21.0 – 04.0 | 21 000 | 4,0 – 2,6 |
| TPR 21.0 – 05.0 | 21 000 | 5,0 – 3,0 |
| TPR 21.0 – 06.0 | 21 000 | 6,0 – 3,7 |
| TPR 21.0 – 07.0 | 21 000 | 7,0 – 4,5 |
| TPR 21.0 – 08.0 | 21 000 | 8,0 – 5,0 |
| TPR 30.0 – 02.0 | 30 000 | 2,0 – 1,7 |
| TPR 30.0 – 03.0 | 30 000 | 3,0 – 2,1 |
| TPR 30.0 – 04.5 | 30 000 | 4,5 – 2,8 |
| TPR 30.0 – 05.0 | 30 000 | 5,0 – 3,0 |
| TPR 30.0 – 06.0 | 30 000 | 6,0 – 3,75 |
| TPR 30.0 – 07.0 | 30 000 | 7,0 – 4,5 |
| TPR 30.0 – 08.0 | 30 000 | 8,0 – 5,0 |
